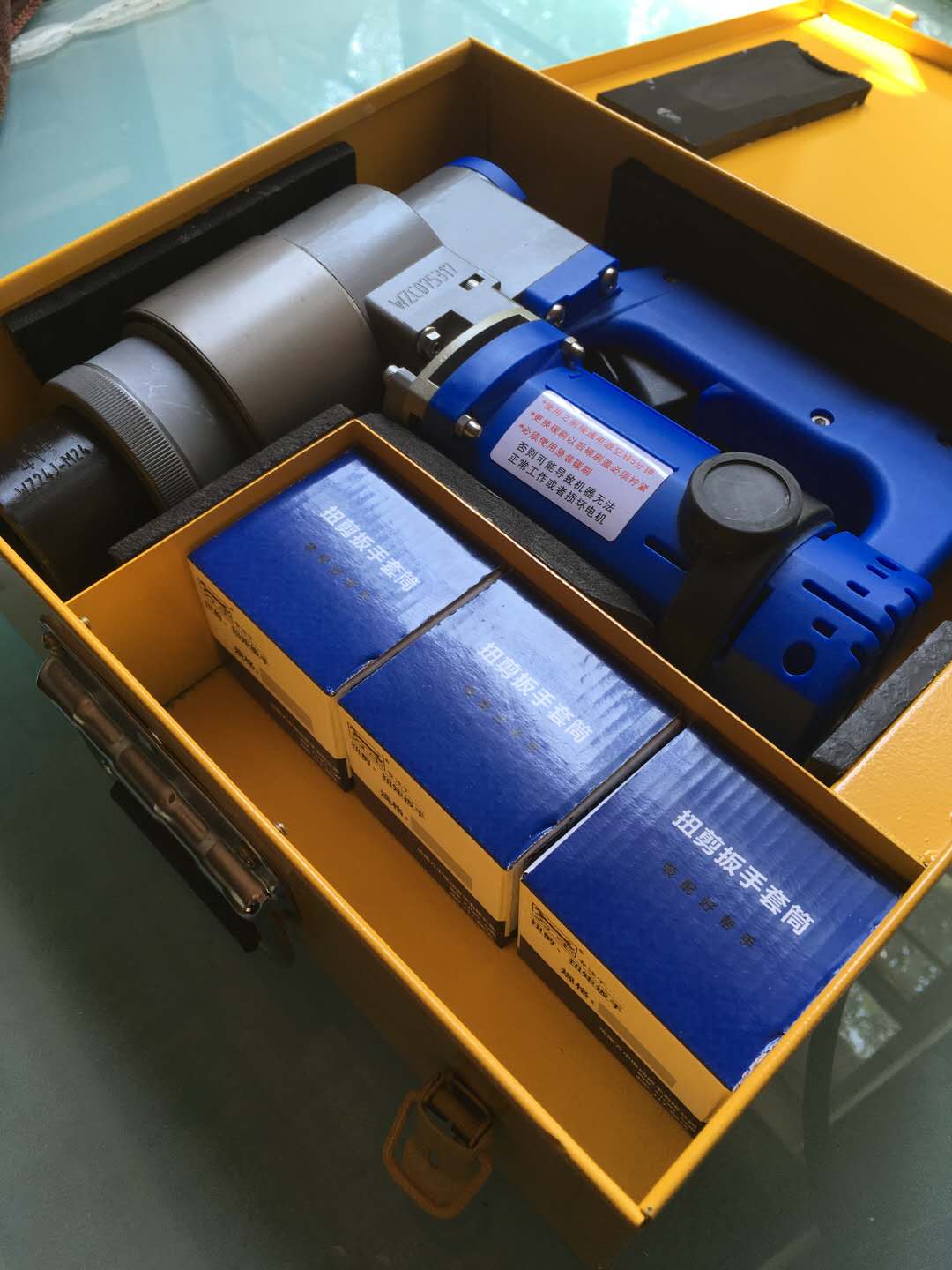

1、電源的連接
1. Connection of power supply
先將主機的三芯插頭插入控制儀相應的插座上，然后將控制儀上的電源線接入電網。綠/黃雙色芯線為接地線。
First insert the three core plug of the host into the corresponding socket of the controller, and then connect the power line of the controller to the power grid. The green / yellow core wire is the grounding wire.
工作結束后，以相反方向拆卸。
At the end of the work, remove in the opposite direction.
2、螺栓的扭緊操作
2. Tightening operation of bolts
1）裝上反力支架，并緊固螺釘。開動主機，使方頭銷孔與反力支架孔相對應，然后裝入扳手套筒，插上銷釘，并用橡膠圈固定。
1) Install the reaction support and tighten the screws. Start the main engine to make the square pin hole correspond to the counterforce bracket hole, then install the wrench socket, insert the pin and fix it with rubber ring.
2）將控制儀的扭矩旋扭調到所需扭矩值，將主機正反開關撥到正轉位置，把扳手套筒套在螺紋連接件的六方上。
2) Adjust the torque of the controller to the required torque value, turn the forward and reverse switch of the main engine to the forward position, and put the wrench socket on the hexagon of the threaded connector.
3）按下電源開關，扳手啟動。當反力支架力臂靠牢支點時（支點可以是鄰近的一只螺栓或其他可做支點的位置）螺栓開始擰緊。當螺栓扭矩達到預定扭矩時，扳手自動停止，緊固完成，放開電源開關，進行下一只螺栓的緊固工作。
3) Press the power switch and the wrench starts. When the arm of the reaction support is close to the fulcrum (the fulcrum can be an adjacent bolt or other position that can be used as fulcrum), the bolt starts to tighten. When the bolt torque reaches the predetermined torque, the wrench will stop automatically, the tightening is completed, the power switch will be released, and the next bolt will be tightened.
4）扳手自動停止后，靠反力支架的彈性形變力，使支架力臂自動脫離支點，取下扳手。如力臂不能脫離支點時，可撥動正反開關，點動電源開關，扳手即可取下。
4) After the spanner stops automatically, the force arm of the support is automatically separated from the fulcrum by the elastic deformation force of the reaction support, and the spanner is removed. If the force arm can not be separated from the fulcrum, the positive and negative switch can be turned, the power switch can be inched, and the wrench can be removed.
3、螺栓的拆卸操作
3. Removal of bolts
扳手在拆卸螺栓（反轉）時，其操作方法與擰緊操作相同，只是將正反開關撥到反轉位置，螺栓卸松后防開電源開關。
When the wrench is removing the bolt (reversing), its operation method is the same as the tightening operation, except that the positive and negative switch is turned to the reverse position, and the power switch is prevented from opening after the bolt is removed.
4、扭矩的選擇與調節
4. Selection and adjustment of torque
1）用戶可在100---3500Nm的范圍內任意選擇相應規格的電動扳手。
1) The user can choose the electric wrench of corresponding specifications in the range of 100-3500nm.
2）控制儀面板上有“扭矩調節”旋扭，刻有0—100刻度值，用以調節扭矩。
2) There is a "torque adjustment" knob on the panel of the controller, which is engraved with 0-100 scale value to adjust the torque.
3）調節方法：產品出廠帶有扭矩測試數據卡片，供用戶標定時參考，用戶可根據所需扭矩選擇某一刻度值，按照擰緊螺栓的操作方法，扭緊螺栓。用測力扳手或其他測力儀器測出螺栓的實際扭矩值，若扭矩值偏高，將旋扭向低刻度調節；若扭矩值偏低，則向高刻度值調節，反復幾次既可達到所需精 確扭矩值。
3) Adjustment method: the product is delivered with torque test data card for user's reference during calibration. The user can select a scale value according to the required torque and tighten the bolt according to the operation method of tightening the bolt. Use force measuring wrench or other force measuring instrument to measure the actual torque value of the bolt. If the torque value is too high, adjust the torque to the low scale; If the torque value is low, adjust to the high scale value, and repeat several times to achieve the required accurate torque value.
