扭矩扳手倍增器采用高能行星變速機構作為主傳動，體積小，重量輕，是用來緊固和拆卸大規格螺栓的工具，由于變速比大，輸入較小力量能產生很大的輸出扭矩，反作用支腳可360o任意調換位置；該扭矩扳手倍增器操作人員只需施加很小的力，即可得到1-28倍的輸出力矩.配套扭力扳手根據傳動比預置好扭力,達到相應的預緊扭矩，能自動發出訊號“嗒"的一聲報警，同時伴有明顯的手感振動,從而輕捷的完成螺栓螺母的緊固拆卸工作。
The torque wrench multiplier uses the high-energy planetary gear change mechanism as the main drive, which is small in size and light in weight. It is a tool for fastening and disassembling large bolts. Due to the large gear change ratio, a small input force can produce a large output torque, and the reaction leg can be adjusted at 360o; The torque wrench multiplier operator only needs to apply a small force to obtain 1-28 times of output torque. The matching torque wrench presets the torque according to the transmission ratio, reaches the corresponding pre-tightening torque, and can automatically send out a "click" alarm, accompanied by obvious hand vibration, so as to easily complete the fastening and disassembly of bolts and nuts.
扭矩扳手倍增器功能特點：
Function features of torque wrench multiplier:
采用行星變速機構作為主傳動，體積小，重量輕，由于變速比大，輸入較小力量就能產生很大的輸出扭矩，反作用支腳可
The high efficiency planetary transmission mechanism is used as the main transmission, which is small in size and light in weight. Due to the large transmission ratio, a small input force can produce a large output torque, and the reaction leg can
任意調換位置；操作人員只需施加很小的力，即可得到倍的輸出力矩配套扭力扳手根據傳動比預置好扭力
Arbitrarily change positions; The operator only needs to apply a small force to obtain times the output torque. The matching torque wrench presets the torque according to the transmission ratio
達到相應的預緊扭矩，能自動發出訊號嗒
When the corresponding pre-tightening torque is reached, the signal can be sent automatically
的一聲警報，同時伴有明顯的手感振動從而輕捷的完成螺栓螺母的緊固拆卸工作。扭矩扳手倍增器是由扭矩扳手、扭矩扳手倍增器、反作用力臂，轉接套筒頭組成，
And accompanied by obvious hand vibration, so as to easily complete the fastening and disassembly of bolts and nuts. The torque wrench multiplier is composed of torque wrench, torque wrench multiplier, reaction arm and adapter socket head,
在物理原理上力臂越長，作用力越大。但是在實際操作當中，為了實現大扭矩而無限加長手柄是不現實的。例如在需要扭矩值達到
In physical principle, the longer the arm of force, the greater the force. However, in actual operation, it is unrealistic to lengthen the handle indefinitely in order to achieve large torque. For example, when the required torque value reaches
時，不可能再單靠人力和扭矩扳手的手柄長短來實現。
It is impossible to achieve this by manpower and the length of the handle of the torque wrench.
根據物理原理，在一定的施力前提下，旋轉的距離決定了旋轉的效果。所以這里用物理公式取代杠桿的經典原理：扭矩輸出功率
According to the physical principle, under the premise of certain force application, the rotation distance determines the effect of rotation. So here we replace the classical principle of lever with physical formula: torque output power
輸入扭矩
Input torque
轉數。
revolutions.
輸出功率由轉數決定，而不是手柄的長度。扭矩倍增器（扭矩放大器）通過傳動機構實現力的倍增，從而避免了使用加長桿的麻煩。輸入輸出扭矩的倍數*由此傳動機構決定，所以它很大程度上決定了扭矩倍增器（扭矩放大器）的質量。
The output power is determined by the number of revolutions, not the length of the handle. The torque multiplier (torque amplifier) multiplies the force through the transmission mechanism, thus avoiding the trouble of using the extension rod. The multiple of input and output torque * is determined by the transmission mechanism, so it largely determines the quality of torque multiplier (torque amplifier).
扭矩倍增器（扭矩放大器）采用高質量的精密滾珠軸承構建行星齒輪機構，另外配備過載保護，保證輸出扭矩準確安全的實現。扭矩倍增器（扭矩放大器）非常牢固，能夠高強度連續使用，非常適合石油、化工、能源等重型工業。
The torque multiplier (torque amplifier) uses high-quality precision ball bearing to build planetary gear mechanism, and is additionally equipped with overload protection to ensure the accurate and safe realization of output torque. The torque multiplier (torque amplifier) is very firm and can be used continuously with high strength, especially suitable for heavy industries such as petroleum, chemical industry and energy.
扭矩扳手倍增器的使用注意事項：
Precautions for use of torque wrench multiplier:
（1）需注意配合的扭力扳手的扭矩值,請勿過載使用。
(1) Pay attention to the torque value of the matched torque wrench. Do not overload it.
（2）盡量保持扭力扳手驅動頭、倍增器和被鎖物同軸線對準。
(2) Try to keep the drive head of torque wrench, multiplier and locked object aligned with the same axis.
）盡量保持反作用力臂與抵擋物的平面接觸。
）Try to keep the reaction arm in contact with the plane of the object.
（4）盡量保持反作用力與反作用力臂成直角。
(4) Try to keep the reaction force at right angles to the reaction arm.
（5）反作用力點應盡量遠離倍增器，并在三角區內。
(5) The reaction point should be as far away from the multiplier as possible and within the triangle area.
（6）基于考慮，不容許使用雙臂或平衡式反作用力臂。
(6) For consideration, the use of double arms or balanced reaction arms is not allowed.
（7）要取下倍增器，先移去扭力扳手和撥動反彈裝置，切忌敲打
(7) To remove the multiplier, first remove the torque wrench and toggle the rebound device. Do not knock
本文由

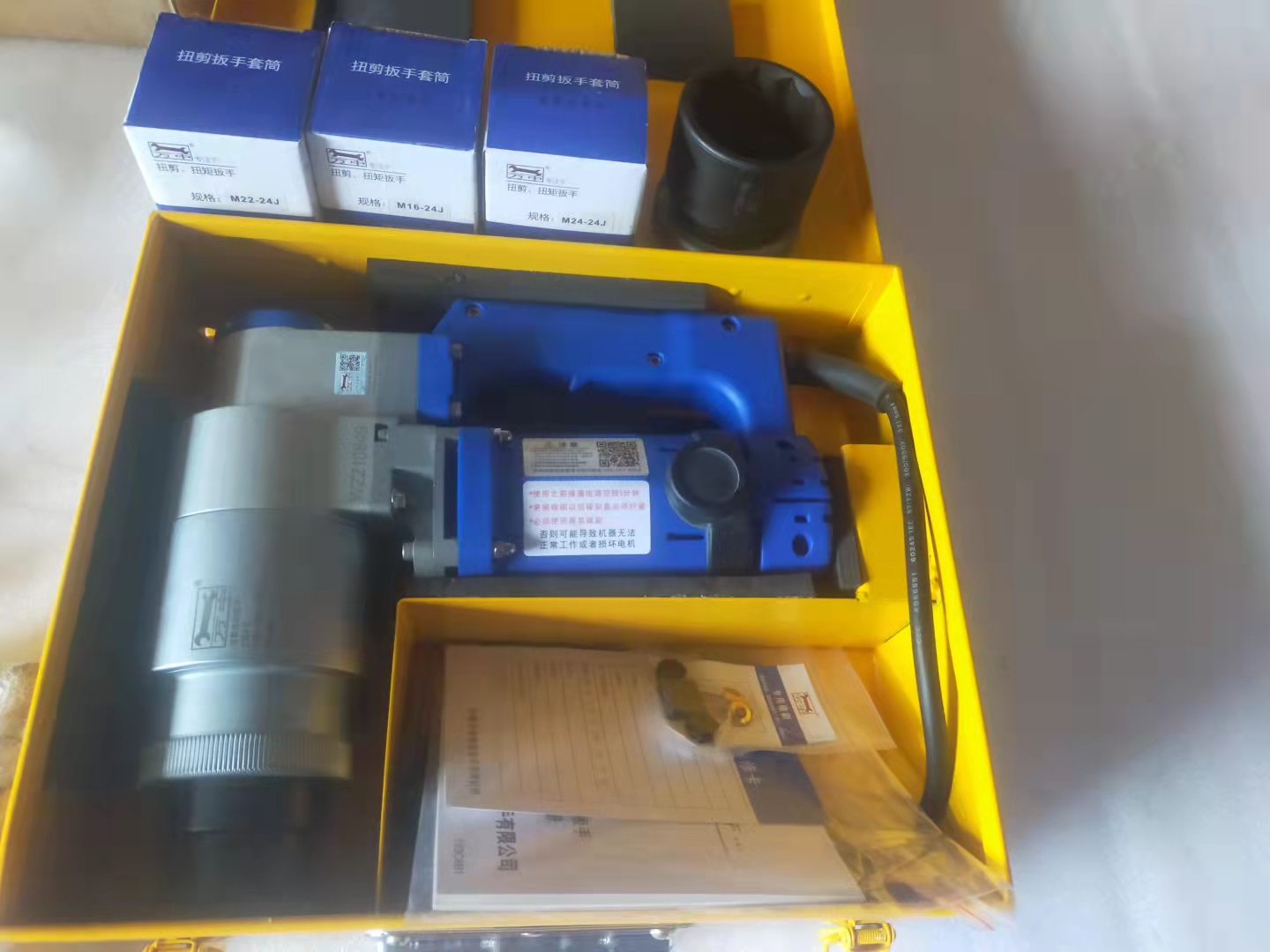

扭剪螺栓專用扳手友情奉獻.更多有關的知識請點擊:
