租用扭剪扳手 對外出租扭剪型電動扳手 扭剪扳手租賃
Rent the torsion shear wrench, rent the torsion shear type electric wrench, and rent the torsion shear wrench

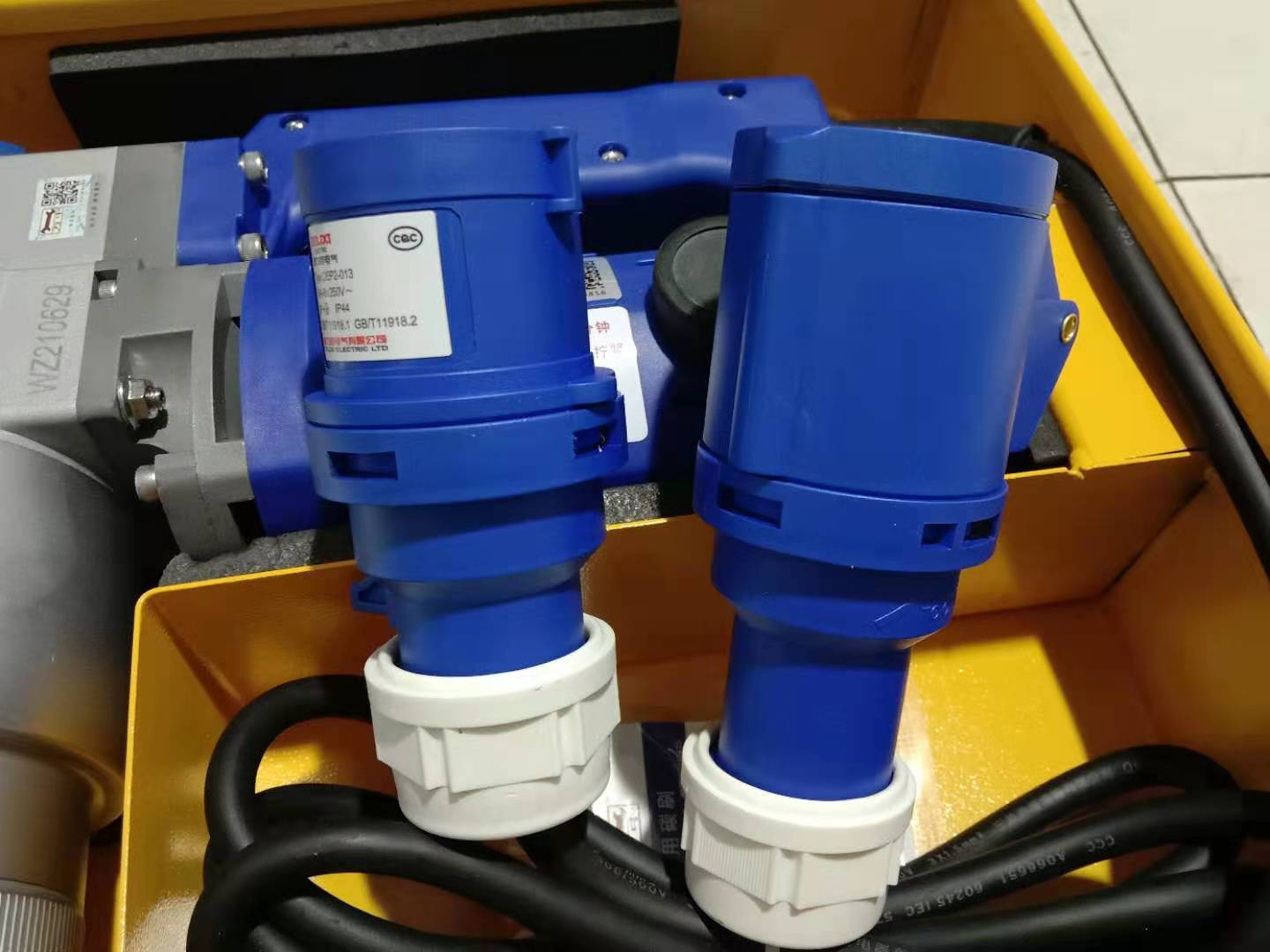

本公司對外出租扭剪型電動扳手，x24j扭剪扳手適用于M16.20.22.24四種扭剪螺栓，x30j-2扭剪扳手適用于M16.20.22.24.27.30六種扭剪螺栓
The company rents out torsion shear electric wrenches. X24j torsion shear wrenches are applicable to m16.20.22.24 four kinds of torsion shear bolts, and x30j-2 torsion shear wrenches are applicable to m16.20.22.24.27.30 six kinds of torsion shear bolts
對外出租的扭剪扳手，租用的是平時廠里的備用扳手，有意者可以聯系公司銷售部。
For the externally rented torsion shear wrenches, the spare wrenches in the factory are rented. Interested parties can contact the Sales Department of the company.
1，計算需要的扭矩值，這里以高強度螺栓為例：
1. First, calculate the required torque value. Here, take the high-strength bolt as an example:
終擰扭矩值=扭矩系數*預拉力值標準值*螺栓公稱直徑
Final tightening torque value = torque coefficient * pretension value (standard value) * nominal diameter of bolt
2，設定好一個需要的扭矩值。
2. Set a required torque value.
調節完后中間豎桿可塞回。
The middle vertical rod can be plugged back after adjustment.
3，設定扭矩后，將套筒插入方形驅動頭。
3. After setting the torque, insert the sleeve into the square drive head.
4，通過調整卡子的位置來調節順/逆時針旋轉方向。
4. Adjust the clockwise / counterclockwise rotation direction by adjusting the position of the clip.
5，將套筒套在螺栓頭部或螺母上，本示例是套在螺帽上。
5. Put the sleeve on the bolt head or nut, and this example is on the nut.
6，在扭緊的有時候螺帽和螺母會同時轉動，需要用一個扳手卡緊螺母，之后順時針轉動扭矩扳手再對螺帽進行緊固。
6. When tightening, sometimes the nut and nut will rotate at the same time. It is necessary to clamp the nut with a wrench, and then turn the torque wrench clockwise to tighten the nut.
（PS:扭矩很大時，可外加接長套桿以便操作省力。）
(PS: when the torque is large, an extension sleeve rod can be added to save labor.)
7，在施力過程中，按照國家標準儀器操作規范，其垂直度偏差左右不應超過10度。其水平方向上下偏差不應超過3度，操作人員在使用過程中應保證其上下左右施力范圍均不超過15度。
7. In the process of applying force, according to the national standard instrument operation specification, the verticality deviation shall not exceed 10 degrees. The vertical deviation in the horizontal direction shall not exceed 3 degrees, and the operator shall ensure that the upper, lower, left and right force ranges do not exceed 15 degrees during use.
8，聽到“咔嗒”聲后，緊固結束，然后應及時解除作用力。
8. After the "click" sound is heard, the fastening is completed, and then the force shall be released in time.
9，扳手是測量工具，應輕拿輕放，不能代替榔頭敲打，如長期不用，調節標尺刻線退至扭矩小數值處，有利于保證扭矩的精度。存放于干燥處。
9. The wrench is a measuring tool and should be handled with care. It can not replace the hammer to knock. If it is not used for a long time, adjust the scale score to the small value of torque, which is conducive to ensuring the accuracy of torque. Store in a dry place.
The above is the detailed introduction of the torsion shear wrench. I hope it will help you. If you have any questions, please contact us. We will provide you with services in a professional manner http://m.lvhe888.com
