摩擦性高強螺栓與扭剪型高強螺栓到底有什么不同啊？都是高強螺栓嗎
What is the difference between friction high-strength bolts and torsion shear high-strength bolts? Are they all high-strength bolts
都是高強度螺栓，兩者區別如下：
They are high-strength bolts. The difference between them is as follows:
一、承載能力不同
1、 Different bearing capacity
1、摩擦性高強螺栓：以板層間出現滑動作為承載能力出色狀態。
1. Friction high-strength bolt: the sliding between plates is regarded as the ultimate state of bearing capacity.
2、扭剪型高強螺栓：以板層間出現滑動作為正常使用出色狀態，而以連接破壞作為承載能力出色狀態。
2. Torsional shear type high-strength bolt: the sliding between plates is regarded as the limit state of normal use, and the connection failure is regarded as the limit state of bearing capacity.
二、應用位置不同
2、 Different application locations
1、摩擦性高強螺栓：不能更好地發揮螺栓的潛能。在實際應用中，對十分重要的結構或承受動力荷載的結構，尤其是荷載引起反向應力時，應該用摩擦型高強螺拴，此時可把未發揮的螺栓潛能作為安全儲備。
1. Friction high-strength bolt: the potential of the bolt cannot be fully developed. In practical application, friction type high-strength bolts should be used for very important structures or structures bearing dynamic loads, especially when the load causes reverse stress. At this time, the untapped bolt potential can be used as a safety reserve.
2、扭剪型高強螺栓：除摩擦性高強螺栓以外的地方應采用承壓型高強螺栓連接以降低造價。
2. Torsional shear high-strength bolt: except for friction high-strength bolt, pressure bearing high-strength bolt connection should be used to reduce the cost.
三、使用方式不同
3、 Different ways of use
1、摩擦性高強螺栓：限單次使用，用于連接，不能重復使用。
1. Friction high-strength bolt: only for single use, for permanent connection, and cannot be reused.

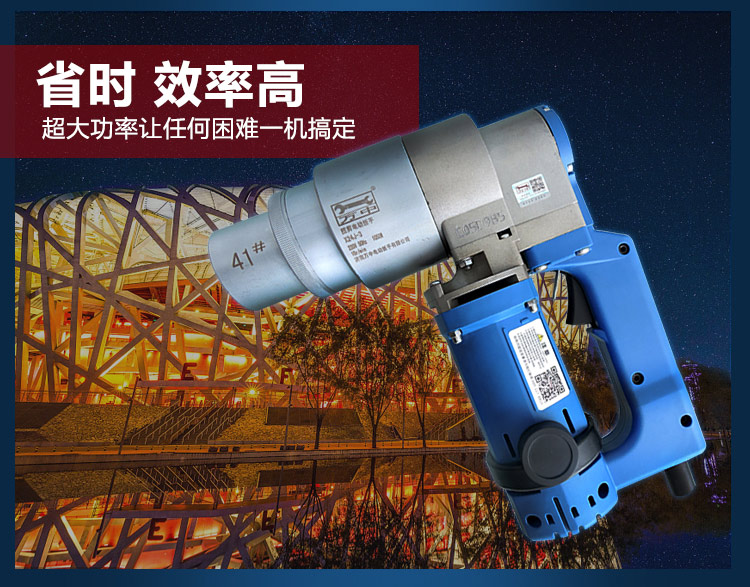

2、扭剪型高強螺栓：先初擰后終擰，初擰高強螺栓需用沖擊型電動扳手或扭矩可調電動扳手；而終擰高強螺栓有嚴格的要求，終擰扭剪型高強螺栓用扭剪型電動扳手，終擰扭矩型高強螺栓用扭矩型電動扳手。
2. Torsion shear type high-strength bolts: initial tightening is followed by final tightening. Impact type electric wrench or torque adjustable electric wrench is required for initial tightening of high-strength bolts; However, there are strict requirements for final tightening of high-strength bolts. Torque shear type electric wrenches are used for final tightening of torsion shear type high-strength bolts, and torque type electric wrenches are used for final tightening of torque type high-strength bolts.
