定扭矩電動扭力扳手是裝配螺紋件及螺栓的機械化施工工具，具有自動控制扭矩功能。定扭矩電動扭力扳手應用于栓焊結構橋梁的架設，廠房、塔架及化工、冶金、發電設備的安裝。大型機械、起重設備和車輛裝配作業，以及對螺紋緊固件的扭矩及軸向拉有嚴格要求的場合。
Constant torque electric torque wrench is a mechanized construction tool for assembling threaded parts and bolts. It has the function of automatic torque control. The constant torque electric torque wrench is used in the erection of bolted and welded bridges, and the installation of plants, towers, chemical, metallurgical and power generation equipment. Assembly of large machinery, lifting equipment and vehicles, and occasions with strict requirements for torque and axial tension of threaded fasteners.
定扭矩電動扭力扳手特點：
Features of constant torque electric torque wrench:

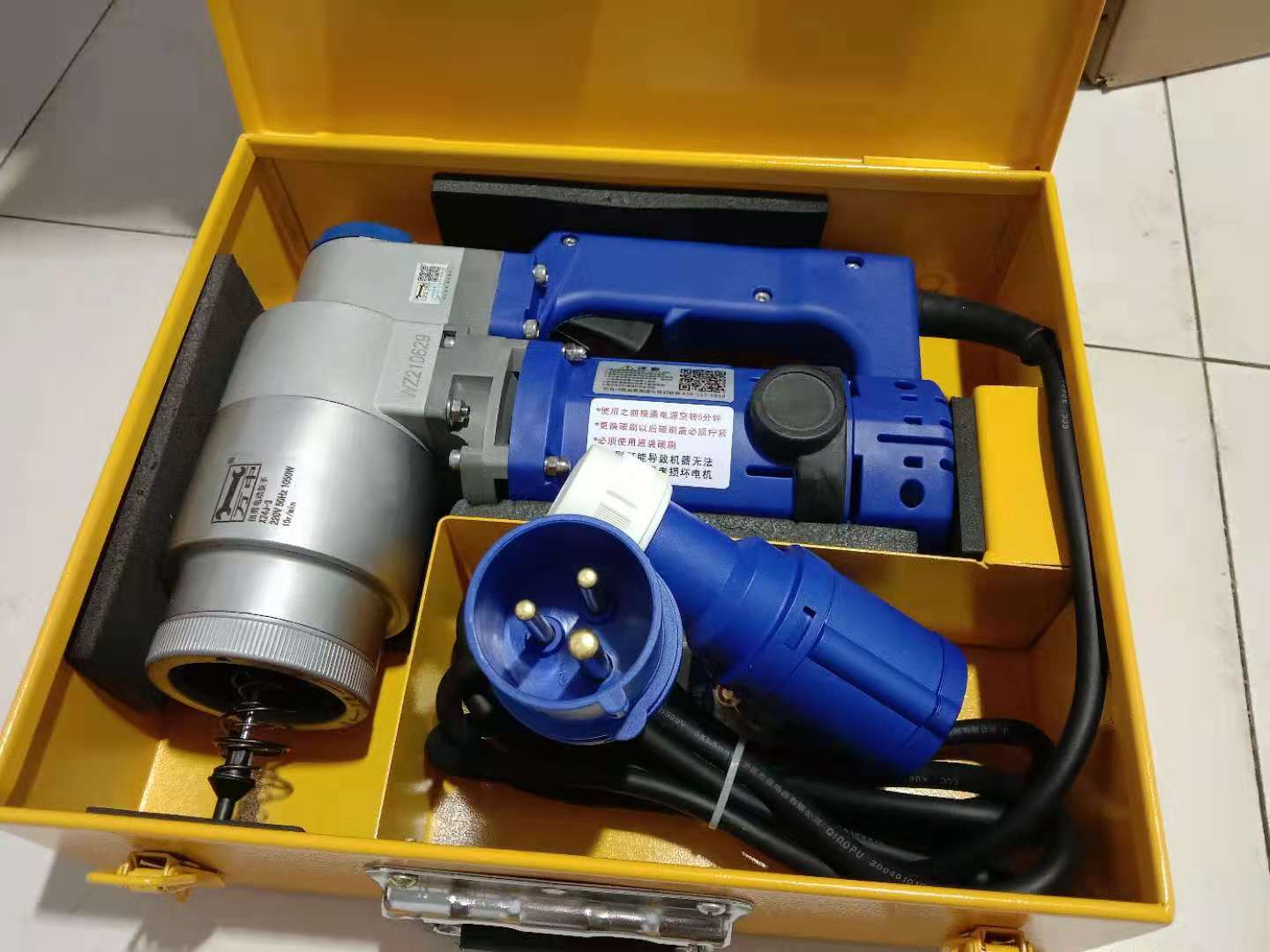

電動扭力扳手由主機和控制儀兩部分組成，主機采用雙重,緣單相串激式電動機和減速機構，結構新穎、體積小、重量輕、安全可靠。由于采用靜扭結構，運轉平穩，無振動、無沖擊，噪音小，操作者不受反力矩的影響，因而勞動強度低。額定電壓220V50/60Hz精度±5%。
The electric torque wrench is composed of a host and a controller. The host adopts a double edge single-phase series motor and a reduction mechanism, which has the advantages of novel structure, small volume, light weight, safety and reliability. Due to the static torsion structure, the operation is stable, no vibration, no impact, low noise, and the operator is not affected by the counter torque, so the labor intensity is low. Rated voltage 220V50 / 60Hz, accuracy ± 5%.
電動扭力扳手螺栓的擰緊操作
Tightening operation of electric torque wrench bolt
1、裝上反支架，并緊固螺釘。開動主機，使方頭銷孔與反支架孔相對應，然后裝入扳手套筒，插上銷釘，并用橡膠圈固定。
1. Install the reverse bracket and tighten the screws. Start the main engine so that the square head pin hole corresponds to the reverse support hole, then install the wrench socket, insert the pin and fix it with a rubber ring.
2、將控制儀的扭矩旋鈕調到所需扭矩值，將主機正反開關撥到正轉位置，把扳手套筒套在螺紋連接件的六方上。
2. Adjust the torque knob of the controller to the required torque value, turn the forward and reverse switch of the host to the forward position, and put the wrench socket on the hexagon of the threaded connector.
3、按下電源開關，扳手啟動。當反支架臂靠牢支架時（支點可以是鄰近的一只螺栓或其他可作支點的位置）螺栓開始擰緊。當螺栓扭矩達到預定扭矩時，扳手自動停止，緊固完成，松開電源開關，進行下一只螺栓的擰緊工作。
3. Press the power switch and the wrench starts. When the reverse support arm is firmly against the support (the fulcrum can be an adjacent bolt or other position that can be used as a fulcrum), the bolt begins to tighten. When the bolt torque reaches the predetermined torque, the wrench will automatically stop, the tightening is completed, loosen the power switch and tighten the next bolt.
4、扳手自動停止后，靠反支架的彈性形變，使支架臂自動脫離支點，取下扳手。如臂不能脫離支點時，可撥動正反開關，點動電源開關扳手即可取下.
4. After the wrench stops automatically, the elastic deformation of the reverse support makes the support arm automatically separate from the fulcrum and remove the wrench. If the arm cannot be separated from the fulcrum, turn the positive and negative switch and click the power switch wrench to remove it
