扭剪扳手型號及技術參數
Type and technical parameters of torsion shear wrench
FLP電動力矩扳手:我公司吸收國內外技術和技術，采用相關零部件替代進口產品。扭矩范圍廣，機電性能優越，體積小，重量輕，鎖緊速度快，扭矩調節快捷方便，達到設定扭矩時停止工作，比較大扭矩可達3500Nm，可擰緊m20-m36的高強螺栓螺母。使用靜態扭轉結構,不影響設計和制造、整體杠桿,減輕操作人員勞動強度和工作電壓220 v,集成的杠桿,裝卸六角螺栓或螺母,可以自動控制轉矩的大小,當工作在緊舒適的手在火災中,水力發電廠,石油,煤和鋼結構、鐵路、橋梁建筑、大型設備安裝、汽車組裝廠,石化管道,壓力容器行業等。非常適用于對預緊力要求嚴格、螺栓解鎖次數較多或解鎖次數較多的場合。
FLP Electric Torque Spanner: Our company absorbs advanced technology and technology at home and abroad, and uses related parts to replace imported products. Wide range of torque, superior mechanical and electrical performance, small size, light weight, fast locking speed, quick and convenient adjustment of torque, stop working when setting torque, maximum torque up to 3500Nm, can tighten m20-m36 high-strength bolts and nuts. The use of static torsion structure does not affect the design and manufacture, the overall lever, reduces the operator's labor intensity and work voltage 220 V, integrated lever, loading and unloading hexagonal bolts or nuts, can automatically control the torque. When working in a tight and comfortable hand in fire, hydraulic power plants, oil, coal and steel structures, railways, bridges, large-scale equipment installation, automobile assembly plants, petrochemical pipelines, Pressure Vessel Industry, etc. It is especially suitable for situations where the pre-tightening force is strictly required, the number of bolt unlocking is more or the number of unlocking is more.

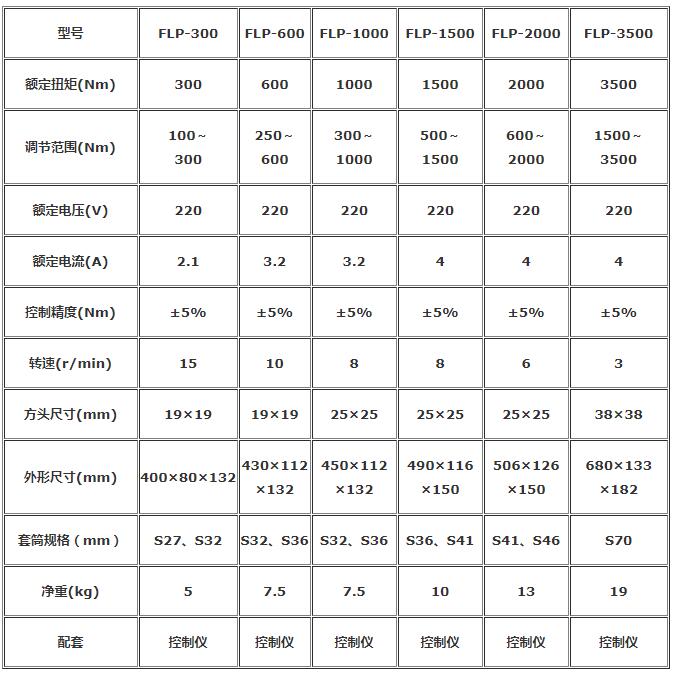

電動扭矩扳手技術參數：
Technical parameters of electric torque wrench:
P1B扭剪型電動扳手：本機是扭剪型螺栓擰緊作業的必備工具，當扳手到達一定扭矩時，即可從螺栓的V型切口處剪斷螺栓梅花頭局部，完成螺栓擰緊作業，普遍應用于鋼構造橋梁、廠房、發電設備等設備的施工作業。
P1B twist-shear electric wrench: This machine is a necessary tool for twist-shear bolt tightening operation. When the wrench reaches a certain torque, it can cut the part of the bolt plum blossom head from the V-cut of the bolt to complete the bolt tightening operation. It is widely used in the construction of steel structure bridges, factory buildings, power generation equipment and other equipment.

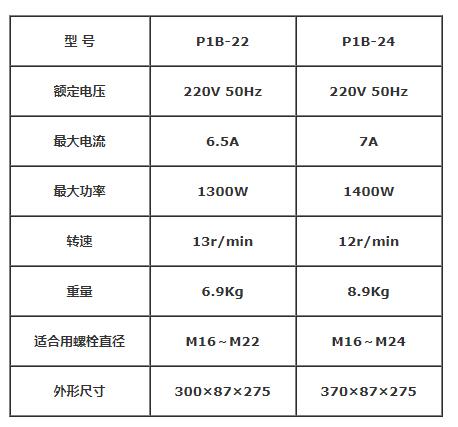

扭剪型電動扳手技術參數：
Technical parameters of Torsion-shear electric wrench:
FYK中空液壓扳手、液壓扭力扳手、液壓力矩扳手：比較大限度的采用高強度輕金屬,一體成型動力頭，多維度進步強度及壽命；較大的扭矩/重量比,雙作用，高速,轉角大，效率高,一只動力頭可配合多種工作頭運用，工作范圍廣,360度旋轉軟管接頭使在狹小的空間內運用便當,絕不會呈現機構卡死,扭矩反復精度高達±3%,松開時不需其它工具,存貯箱維護扳手頭防止損壞，浸水和純凈,運動部件少，經久耐用，維護便當。本扳手體積小，力矩大、重量輕、預緊準確。目前在法蘭裝置、汽輪機、隧道拙進機、球磨機、大型鍋爐、地腳螺栓銜接預緊等產品裝置中得到普遍應用。
FYK Hollow Hydraulic Spanner, Hydraulic Torque Spanner, Hydraulic Torque Spanner: Max use of high strength light metal, forming power head in one body, improve strength and life in an all-round way; Big torque/weight ratio, double-acting, high speed, large rotation angle, high efficiency, one power head can cooperate with a variety of working heads, wide range of work, 360 degree rotating hose joint makes it easy to use in narrow space. When the mechanism is never jammed, the repetitive accuracy of the torque is as high as (+3%). When loosened, no other tools are needed. The storage box maintains the wrench head to prevent damage, immersion and purity, less moving parts, durability and convenient maintenance. The wrench has small volume, large torque, light weight and accurate preloading. At present, it has been widely used in flange devices, steam turbines, tunnel entry machines, ball mills, large boilers, anchor bolt connection pre-tightening and other products.
特性：
Characteristic:
采用高強度輕金屬制造，360×360度旋轉接頭，接近無油管設計
Made of high strength light metal, 360 * 360 degree rotary joint, close to tubeless design
一體成型動力頭，進步運用壽命；一只動力頭可配多種工作頭運用，工作范圍廣
Integrative shaping power head, improve service life; One power head can be used with a variety of working heads, with a wide range of work.
容納設計，平安性比較佳
Inclusion design, the best safety
輕、薄、短、小、扭力大，順應各種“高難度”空間
Lightweight, thin, short, small, big torsion, adapt to all kinds of "difficult" space

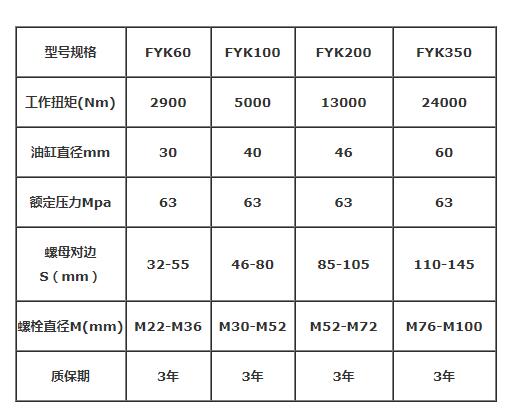

中空液壓扳手技術參數:
Technical parameters of hollow hydraulic wrench:
FYB驅動式液壓扳手、液壓扭矩扳手、液壓力矩扳手構造緊湊，體積小，重量輕，輸出扭力大，是螺帽拆卸和螺栓預緊的得力工具。規范四方形驅動軸，配合不同規格套筒，合適多種場所應用,比較大限度的采用高強度輕金屬,一體成型動力頭，多維度進步強度及壽命。較大的扭矩/重量比,雙作用，高速,轉角大，效率高, 360度旋轉軟管接頭使在狹小的空間內運用便當,絕不會呈現機構卡死, 扭矩反復精度高達±3%,松開時不需其它工具,存貯箱維護扳手頭防止損壞，浸水和純凈,運動部件少，經久耐用，維護便當。目前在法蘭裝置、汽輪機、隧道拙進機、球磨機、大型鍋爐、地腳螺栓銜接預緊等產品裝置中得到普遍應用。
FYB driven hydraulic wrench, hydraulic torque wrench and hydraulic torque wrench are compact in structure, small in size, light in weight and large in output torque. They are powerful tools for nut disassembly and bolt pre-tightening. Specification of square drive shaft, with different specifications sleeve, suitable for a variety of places, the maximum use of high-strength light metal, forming power head in one, improve strength and life in an all-round way. Larger torque/weight ratio, double-acting, high speed, large rotation angle, high efficiency, 360 degree rotary hose joint makes it convenient to use in narrow space. It will never show mechanism jamming. Torque repetition accuracy is as high as +3%. No other tools are needed when loosening. Storage tank maintenance wrench prevents damage, immersion and purity, less moving parts, durable and convenient maintenance. At present, it has been widely used in flange devices, steam turbines, tunnel entry machines, ball mills, large boilers, anchor bolt connection pre-tightening and other products.

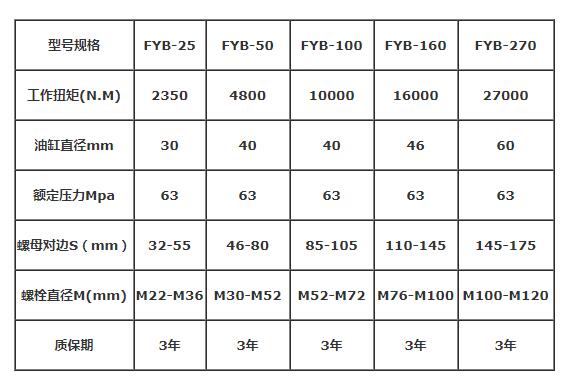

驅動式液壓扳手技術參數:
Technical parameters of driving hydraulic wrench:
NJS大功率液壓扳手、液壓扭矩扳手：由液壓泵和帶棘輪式液壓扭矩扳手兩局部組成。支配液壓泵的手柄，液壓缸產生推力，經過曲柄系統構成力矩，帶動螺母轉動一個角度，使扭矩傳送到帶棘輪安裝的內六角套筒上從而傳送給螺栓聯接，按請求預緊螺栓。液壓泵由支配手柄，高壓泵、換向閥、油箱、壓力表和帶快速接頭的輸油管等組成。帶棘輪式液壓扳手由高壓油口、液壓油缸、曲柄、反力桿、棘輪安裝、套筒等組成、前者系動力源部件，后者為扭矩執行機構。比擬準確的控制擰緊扭矩的理想工具，普遍應用于水電廠，熱電廠，煉油廠，化肥廠，造船廠，鋼鐵廠，化工廠，石油開采業，設備裝置業，采礦業機械設備和設備重要螺栓聯接的裝置及拆卸維修，能便當快捷地完成您的裝拆螺栓任務，同時可有效地保證您所需的扭矩值。
NJS high-power hydraulic wrench, hydraulic torque wrench: by the hydraulic pump and ratchet hydraulic torque wrench two parts. Controlling the handle of the hydraulic pump, the hydraulic cylinder generates thrust. Through the crank system, the moment is formed, which drives the nut to rotate at an angle, so that the torque is transmitted to the inner hexagonal sleeve with ratchet wheel installation, and then to the bolt connection, and the bolt is pre-tightened as required. Hydraulic pump is composed of control handle, high pressure pump, reversing valve, oil tank, pressure gauge and oil pipeline with quick joint. The hydraulic wrench with ratchet is composed of high pressure oil nozzle, hydraulic cylinder, crank, reaction rod, ratchet installation, sleeve, etc. The former is power source component, the latter is torque actuator. Comparing with the ideal tool to control tightening torque accurately, it is widely used in hydropower plants, thermal power plants, refineries, fertilizer plants, shipyards, iron and steel plants, chemical plants, petroleum mining industry, equipment installation, mining machinery equipment and equipment important bolt connection devices and disassembly maintenance, can easily and quickly complete your task of bolt assembly and disassembly, while effectively guaranteeing what you need. Torque value.
特性：
Characteristic:
?。?）經過液壓系統壓力表可以準確、牢靠的控制預緊力矩。
(1) Pressure gauge through the hydraulic system can accurately and reliably control the pre-tightening moment.
?。?）進步螺紋聯接鋼度，降低螺栓疲倦斷裂的風險性。
(2) Improve the steel of thread connection and reduce the risk of fatigue fracture of bolts.
（3）保證了普遍采用高強度螺栓聯接的牢靠性，以利減輕重量和節約空間。
(3) The reliability of high strength bolt connection is guaranteed in order to reduce weight and save space.
?。?）運用范圍廣、順應強，可用于螺栓及內六角螺釘?shù)念A(yù)緊。
(4) It can be used for pre-tightening of bolts and internal hexagonal bolts.
?。?）操作簡單，運用便當，經濟平安。
(5) Simple operation, convenient use and economic safety.

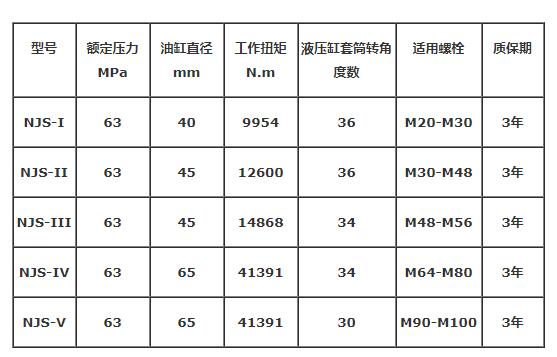

大功率液壓扳手技術參數:
Technical parameters of high power hydraulic wrench:
MDS力矩放大扳手/扭力倍增器：是在發電廠電力檢測及各工業行業消費檢修裝置現場，緊固和拆卸大直徑螺栓螺母相當艱難，非常在操作人員難以施工的環境中(如設備四周空間較小，無法運用加力桿及各類特種扳手或野外管路，鐵路無電源等狀況下)，綜合國內外技術研制勝利力矩放大扳手，可幫您從基本上處理這一難題。主要由主機、反力臂支爪(反作用腳)套筒扳頭號組成，操作人員只需施加很小的力，即可得到4.8-96.8倍的輸出力矩.配套扭力扳手依據傳動比預置好扭力,到達相應的預緊扭矩，能自動發出訊號“嗒”的一聲報*，同時伴有明顯的手感振動,從而輕盈的完成螺栓螺母的緊固拆卸工作。
MDS Torque Amplifier Wrench/Torque Multiplier: It is very difficult to tighten and disassemble large diameter bolts and nuts on the spot of power plant power inspection and consumer maintenance devices in various industries, especially in the environment where operators are difficult to construct (such as small space around equipment, unable to use afterburner and various special wrenches or field pipelines, no power supply for railway, etc.), and it is the first step to integrate domestic and foreign. Advanced technology to develop a magnifying wrench of victory moment can help you basically deal with this problem. Mainly composed of the main engine and reaction arm claw (reaction foot) socket wrench number, the operator can get 4.8-96.8 times of output torque by exerting very little force. The matching torque wrench presets the torque according to the transmission ratio and reaches the corresponding pre-tightening torque, which can automatically send out a signal "voice"*, accompanied by obvious hand vibration, thus completing the tightening of bolts and nuts lightly. Solid disassembly work.
其特性是采用行星變速機構作為主傳動，體積小，重量輕，由于變速比大，輸入較小力氣就能產生很大的輸出扭矩，反作用支腳可360?恣意調整?？苫Q不同規格的套筒，適用多種大直徑螺栓螺母。比較小的工具直徑，比較大的力矩輸出，產品系列化設計，適用范圍更廣。
Its characteristic is to use high-efficiency planetary transmission mechanism as the main transmission, small size, light weight, because of the large speed ratio, input a small force can produce a large output torque, reaction support can be arbitrarily adjusted 360? Interchangeable sleeve of different specifications, suitable for a variety of large diameter bolt nuts. Minimum tool diameter, maximum torque output, product serialization design, wider scope of application.
力矩放大扳手技術參數：
Technical parameters of torque amplification wrench:
